Cooling System Design for High‑Power Rectifiers

A 2 MW rectifier operating at 97% efficiency still rejects 60 kW of heat, equivalent to the heating output of a small commercial boiler. That heat must go somewhere. If it stays inside the power semiconductors, junction temperatures rise, efficiency drops, and component lifespans shorten dramatically.

For engineers and project developers working on electrolysis plants, EV charging hubs, or industrial power conversion systems, cooling system design is not an afterthought—it is a core engineering decision that affects reliability, footprint, maintenance costs, and total cost of ownership.

This guide walks through the fundamentals of high‑power rectifier cooling, compares the two primary approaches—air cooling and liquid cooling—and provides a practical framework for selecting the right system for your application.

Why Cooling Matters – The Physics of Heat in Power Semiconductors

Every power semiconductor—whether diode, thyristor, or IGBT—generates heat during operation. The heat comes from two primary sources:

• Conduction losses: caused by the forward voltage drop across the semiconductor when current flows

• Switching losses: caused by the energy dissipated during turn‑on and turn‑off transitions

These losses manifest as heat at the semiconductor junction. The junction temperature must be kept below the device’s maximum rating—typically 125°C to 150°C for silicon devices. Exceeding this limit leads to immediate failure or accelerated aging.

What this means for your design: A rectifier’s cooling system must remove heat fast enough to keep junction temperatures within limits under all operating conditions—including peak load, high ambient temperature, and transient overloads. The thermal path from junction to ambient involves multiple stages: junction to case, case to heat sink, and heat sink to cooling medium (air or liquid). Each stage has a thermal resistance, and the total resistance determines how much heat can be dissipated for a given temperature rise.

For high‑power rectifiers used in electrolysis or EV charging, the heat dissipation requirement is substantial. A 5 MW containerized rectifier system, for example, may reject over 150 kW of heat during normal operation. Effective cooling is essential to prevent overheating and maintain efficiency.

To understand how different rectifier configurations address thermal management, review IGBT power supply cooling options for high‑capacity electrolysis applications.

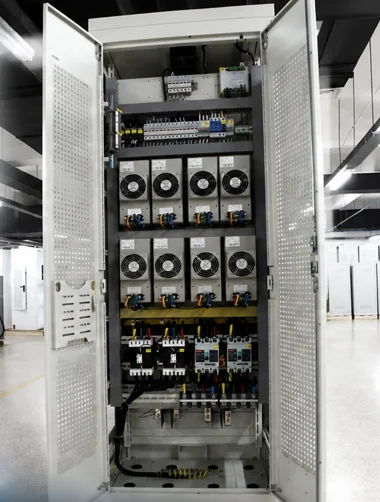

Air‑Cooled Rectifiers – Simplicity with Limits

Air cooling is the most common and economical method for dissipating heat from power rectifiers. It relies on forced airflow—typically via fans—moving across heat sinks attached to the power semiconductors. The heat sinks increase surface area, allowing more efficient transfer of heat to the passing air.

Advantages of Air Cooling

Lower upfront cost. Air‑cooled systems are generally cheaper to implement than liquid‑based systems, with simpler components and no need for pumps, piping, or coolant.

Simpler installation and maintenance. Air cooling does not require connection to a water circuit or complex piping. Maintenance primarily involves cleaning or replacing air filters and checking fan operation.

No freezing or condensation risks. With no water in the system, air‑cooled rectifiers do not risk freeze damage in cold environments. They also avoid condensation issues that can occur when cold water runs through a heat sink in humid air.

Works in most environments. As long as sufficient airflow and acceptable ambient temperatures are available, air cooling functions reliably.

Limitations of Air Cooling

Efficiency limits under heavy load. Air is not as efficient at transporting heat as water. Under high‑power or high‑ambient‑temperature conditions, air cooling may reach its dissipation limits.

Ambient temperature dependency. Cooling performance depends directly on ambient air temperature. If ambient temperature rises beyond specification, the rectifier may derate or shut down due to overheating.

Air quality sensitivity. Dust, humidity, and airborne contaminants can clog filters and reduce cooling performance. In poor air quality environments, filters require frequent replacement.

Noise. Fans can produce significant noise, which may be undesirable in noise‑sensitive environments.

Space requirements. Air‑cooled systems often require larger heat sinks and more cabinet space to achieve adequate heat dissipation compared to liquid‑cooled alternatives.

Liquid‑Cooled Rectifiers – Performance at Scale

Liquid cooling uses a circulating coolant—typically de‑ionized water, a water‑glycol mixture, or dielectric fluid—to absorb heat from the rectifier components and transfer it to a remote heat exchanger. Because liquids have much higher thermal conductivity and heat capacity than air, liquid cooling can remove far more heat per unit volume.

Advantages of Liquid Cooling

Superior heat dissipation. Water has a much higher energy density compared to air, meaning less volume is needed to remove the same amount of heat. Cooling power depends on water temperature and flow rate, not ambient air temperature.

Ambient temperature independence. Even if the ambient temperature around the rectifier is very high, the rectifier can still operate at full capacity as long as the cooling water remains within specification.

Higher power density. Liquid cooling enables more compact rectifier designs because heat sinks can be smaller and components can be packed more densely.

Quieter operation. Liquid‑cooled systems operate more quietly than forced‑air systems, as they do not require high‑speed fans.

More uniform cooling. Liquid cooling provides consistent and uniform cooling across all components, ensuring stable operation under varying load conditions.

Lower long‑term maintenance. Liquid‑cooled systems do not require periodic fan replacement. However, they do require coolant quality monitoring and occasional maintenance of pumps and heat exchangers.

Limitations of Liquid Cooling

Higher upfront cost. Liquid cooling systems are more expensive due to the complexity of components—pumps, piping, heat exchangers, and coolant handling systems.

Infrastructure requirements. Liquid cooling requires access to a cooling water circuit or the installation of a dedicated chiller or dry cooler.

Freezing risk. If the rectifier is placed in a space where temperatures can fall below freezing, the coolant must be protected with antifreeze or the system must be drained.

Condensation risk. If the heat sink becomes colder than the ambient dew point, condensation can form and cause water ingress into electronics.

Coolant quality management. Water quality must be controlled to prevent corrosion, scaling, and biological growth. De‑ionized water is commonly used in primary cooling loops. Strainers or filters may be needed to remove sediment.

Complex maintenance. Liquid systems require more careful and periodic maintenance, particularly to prevent corrosion and leaks.

Air vs Liquid – A Decision Framework

When air cooling is typically the right choice:

• Power rating below 500 kW, where heat dissipation requirements are relatively lower

• Indoor, climate‑controlled environments with stable ambient temperatures

• Applications with intermittent duty cycles where thermal stress is less severe

• Projects with tight capital budgets where lower upfront cost is prioritized

• Sites without access to cooling water infrastructure

When liquid cooling is typically the better choice:

• Power rating above 1 MW where heat dissipation requirements are significant

• Outdoor or harsh environments with high ambient temperatures, dust, or salt spray

• Continuous 24/7 operation where reliability and uptime are critical

• Applications requiring compact footprint, such as containerized deployments

• Projects where total cost of ownership over 10+ years is the primary metric

For containerized electrolysis projects, integrated cooling is a key design feature. Containerized DC power supply systems can be delivered with water or air cooling integrated, designed for ambient temperatures up to 35°C as standard. Explore containerized hydrogen power system cooling configurations for electrolysis applications to see how integrated cooling is implemented in practice.

Cooling System Components and Design Best Practices

For Air‑Cooled Systems

Heat sink selection. The heat sink’s thermal resistance determines how effectively heat transfers from the semiconductor to the air. Larger surface area and optimized fin geometry improve performance. For forced‑air cooling, the heat sink must be designed for the available airflow and pressure drop.

Fan selection. Fan airflow (CFM) and static pressure must be matched to the heat sink and cabinet design. Redundant fans (N+1 configuration) improve reliability—if one fan fails, the remaining fans maintain adequate cooling.

Airflow path design. Cabinet design must ensure even airflow across all heat sinks. Hot spots can develop if airflow is blocked or uneven. Computational fluid dynamics (CFD) simulation is increasingly used to optimize airflow in high‑power rectifier cabinets.

Filter maintenance. Air filters protect internal components from dust but require regular cleaning or replacement. In dusty environments, filter change frequency may be monthly.

For Liquid‑Cooled Systems

Coolant selection. De‑ionized water is the most common primary coolant due to its high thermal conductivity and low electrical conductivity. For cold environments, a water‑glycol mixture prevents freezing. Some systems use dielectric fluids to eliminate conductivity concerns.

Flow rate and pressure. Cooling capacity depends on coolant flow rate and temperature. The system must be designed to deliver adequate flow to all power modules, with balanced flow distribution.

Heat exchanger selection. The heat exchanger transfers heat from the primary coolant loop to a secondary loop (facility water) or to ambient air (dry cooler). Water‑to‑water heat exchangers offer high efficiency and are commonly used in industrial settings.

Temperature control. Coolant temperature must be controlled to prevent condensation (too cold) while maintaining adequate cooling (too hot). Advanced systems include temperature monitoring and flow control.

Water quality management. De‑ionized water loops require monitoring of conductivity and pH. A secondary cooling circuit can reduce concerns regarding raw water quality.

Leak detection. Liquid‑cooled systems should include leak detection to prevent water ingress into electronics. Modular designs with quick‑connect fittings simplify maintenance and reduce leak risks.

General Best Practices

Modular design. Whether air‑cooled or liquid‑cooled, modular rectifier designs simplify troubleshooting and maintenance. If one module fails, the remaining modules can continue operating at reduced capacity.

Redundancy. For critical applications, consider N+1 redundancy for cooling components—fans, pumps, or entire cooling modules.

Thermal monitoring. Continuous monitoring of temperatures at multiple points (coolant inlet/outlet, heat sink, ambient) enables early detection of cooling system degradation.

Altitude derating. At high altitudes, air density decreases, reducing the effectiveness of air cooling. Cooling systems may need to be derated or redesigned for altitude‑specific conditions.

Real‑World Application – Cooling for Electrolysis Rectifiers

Green hydrogen production through water electrolysis requires high‑power DC rectifiers operating continuously—often 24/7 at full load. The cooling system must handle this sustained thermal load reliably.

In containerized electrolysis systems, the rectifier, control cabinets, and cooling units are pre‑installed on a skid or within a container. Cooling with water or air is integrated, and the system is designed for ambient temperatures up to 35°C as standard. For higher ambient temperatures, upgraded cooling systems are available.

For larger installations—such as the 5 MW containerized rectifier systems used in commercial hydrogen plants—liquid cooling is increasingly the preferred approach. Liquid‑cooled systems maintain stable junction temperatures even at 100% load in 50°C ambient conditions, enabling continuous operation without derating.

The choice between air and liquid cooling for electrolysis rectifiers depends on several factors, including the operating environment, power capacity, and available budget. While air cooling offers an economical and easy‑to‑maintain approach for smaller installations, liquid cooling stands out for its high efficiency in demanding environments.

Explore liquid-cooled rectifier designs built to supply megawatt-level DC power and support stable, continuous hydrogen generation. to understand how thermal management integrates with overall system design.

The Future of Rectifier Cooling – Trends and Innovations

Higher efficiency, lower losses. Advances in semiconductor technology—particularly silicon carbide (SiC) and gallium nitride (GaN)—are reducing switching and conduction losses. A 5% reduction in forward voltage drop and 20% improvement in thermal resistance are now achievable with next-generation devices. Lower losses mean less heat to remove, reducing cooling system requirements.

Evaporative cooling. Self‑circulating evaporative inner cooling systems offer high efficiency and energy savings for high‑power rectifier equipment. Experimental results show that evaporative cooling systems have the advantages of high efficiency, energy savings, high reliability, and low operational cost.

Predictive thermal management. Integration of thermal data with current, voltage, and efficiency metrics enables predictive maintenance. Advanced systems can detect cooling system degradation before it causes failure.

Containerized and modular cooling. Pre‑engineered cooling systems designed for containerized rectifier deployments reduce field engineering and accelerate project timelines.

From Cooling Design to Complete System Selection

Cooling system design for high‑power rectifiers is not a one‑size‑fits‑all exercise. The right choice depends on your power rating, operating environment, duty cycle, and long‑term cost priorities.

• For lower‑power, indoor applications with clean air → air cooling offers a simple, cost‑effective solution

• For high‑power, outdoor, or continuous‑operation applications → liquid cooling delivers superior performance and reliability

• For containerized or space‑constrained deployments → liquid cooling enables higher power density

• For projects in harsh or high‑ambient environments → liquid cooling maintains full power output without derating

The “right” answer depends on your specific project constraints. Many project teams find that total cost of ownership—not upfront equipment cost—is the deciding factor. When maintenance, derating losses, and downtime are factored in over a 10‑year horizon, liquid cooling often proves more economical for high‑power, continuous‑operation applications.

Once you have clarified these key decision factors—power rating, operating environment, duty cycle, and maintenance philosophy—comparing the specific specifications of available rectifier cooling configurations becomes the next logical step. You can review liquid‑cooled rectifier systems for high‑capacity applications or air‑cooled configurations for smaller installations.
