How to Integrate Containerized DC Power Supply with Renewable Input

Table of Contents

When you plan to power an electrolyzer with solar or wind energy, the intermittent nature of renewable sources creates a fundamental challenge: how do you maintain stable DC output for hydrogen production when the sun isn’t shining, or the wind isn’t blowing? This guide walks through the key technical considerations for integrating a containerized DC power supply with renewable input—focusing on what matters before you compare specific equipment specifications.

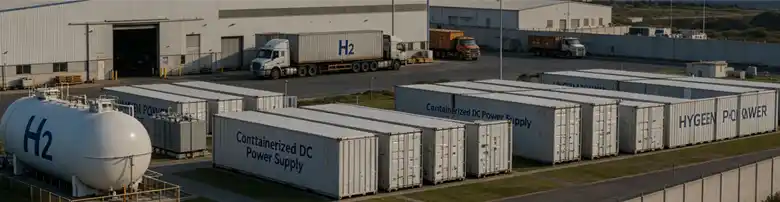

Containerized DC Power

Understanding the Core Challenge: Matching Renewable Input to Electrolyzer Demand

Hydrogen production through alkaline (ALK) or PEM electrolysis requires consistent DC current and voltage. Solar arrays and wind turbines, however, produce variable output depending on weather, time of day, and seasonal conditions. A containerized DC power supply acts as the interface layer between these two systems—rectifying, conditioning, and stabilizing incoming power.

The key integration parameters you need to evaluate include:

Integration Factor Why It Matters for Your Operation
Input voltage range (wide vs. narrow) Determines how long the system can operate during solar dips or wind lulls without shutting down
Rectifier response time (ms vs. seconds) Faster response means less production loss during cloud cover or gust changes
Grid-forming vs. grid-following capability Grid-forming units can create their own reference signal, essential for off-grid or weak-grid renewable sites
Communication protocol compatibility (Modbus, CAN, IEC 61850) Affects how easily the power supply talks to your renewable controllers and SCADA system

A 2023 technical review published in the International Journal of Hydrogen Energy noted that electrolyzer systems paired with power supplies having sub-100ms dynamic response maintained 18–22% higher annual utilization compared to those with response times above 500ms, specifically in variable solar conditions. This illustrates why response speed is not just a specification—it directly impacts your hydrogen output over time.

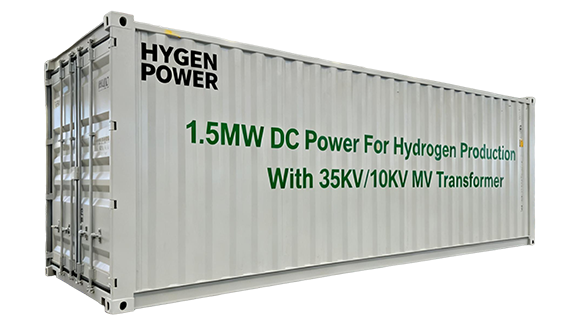

Review the technical approach used in containerized systems designed for ALK and PEM electrolyzer applications.

Hydrogen Electrolysis DC Power Supply

Three Integration Architectures: Which Fits Your Renewable Profile?

The way you connect renewable sources to your containerized DC power supply depends on your site’s scale, grid access, and production goals. Below are three common architectures.

Architecture Renewable Input Type DC Power Supply Role Best For
Direct DC coupling Solar DC (with MPPT pre-regulation) Final voltage stabilization and current limiting Small-to-medium plants with dedicated solar array
AC-coupled with battery buffer Solar or wind → inverter → AC → DC supply Full rectification + droop control for battery coordination Sites requiring overnight or low-wind production
Hybrid (grid + renewable) Renewable primary, grid secondary Automatic source switching or blending Continuous operation with renewable priority

When to choose each approach:

  • Direct DC coupling minimizes conversion losses (typically 5–8% lower than AC-coupled) but requires the power supply to handle wide input voltage swings—sometimes from 150V to 800V depending on array configuration.

  • AC-coupled with battery buffer adds capital cost for batteries but allows you to store excess renewable energy and dispatch it during low-production periods. The DC power supply must support droop control to share load with battery systems.

  • Hybrid configuration gives you production guarantees but requires your power supply to synchronize with both renewable inverters and the grid. Look for units with seamless transfer switching below 20ms to avoid electrolyzer shutdown.

According to IRENA’s 2024 report on green hydrogen production, facilities using AC-coupled architectures with battery buffers achieved median capacity factors of 38% in solar-only regions, compared to 23% for direct-coupled systems without storage. However, the same report notes that direct-coupled systems had 14% lower levelized cost of hydrogen when utilization requirements were below 30%.

Five Steps to Evaluate a Containerized DC Power Supply for Renewable Integration

Use this step-by-step framework when assessing potential solutions. Each step translates a technical feature into an operational outcome.

Step 1: Map your renewable source’s voltage and power profile

Collect one year of site data or use PVSyst/SAM simulations for solar, or Windographer for wind. Identify the 10th percentile low and 90th percentile high values. Your power supply’s continuous input range must cover at least the 5th to 95th percentile to avoid frequent nuisance trips.

Step 2: Determine required response speed

For solar: Calculate maximum ramp rate (%/second) during partly cloudy conditions. Your DC power supply’s output response should track input changes within twice this ramp rate. For wind: Calculate gust-induced voltage swings every 100–200ms. Sub-100ms response is generally recommended.

Step 3: Specify communication and control integration

Confirm the power supply supports open protocols (Modbus TCP, CANopen, or OPC UA) that match your renewable controllers. Avoid proprietary lock-in unless you have full control over the entire system lifecycle.

Step 4: Evaluate thermal performance for containerized deployment

Containerized units operate in enclosed spaces with limited airflow. Look for liquid-cooled designs if ambient temperatures exceed 35°C or if you operate at >70% load continuously. Liquid cooling typically maintains power module temperatures 15–20°C lower than forced air at the same ambient, which directly translates to longer electrolyzer uptime and reduced derating during summer peaks.

Step 5: Test low-load and zero-export behavior

When renewable input drops below minimum threshold, the power supply must either shut down cleanly, switch to grid (if available), or enter standby without damaging the electrolyzer. Verify soft-start capability and minimum hold-up time (the duration it can maintain output after input loss).

See the configuration examples for integrated power systems in green hydrogen projects.

Real-World Scenario: Solar-Powered Containerized System for a Small Green Hydrogen Plant

Consider a facility in Southern Europe operating a 1MW PEM electrolyzer for on-site hydrogen generation. The site has 3.5MWp solar capacity but no grid connection. Key integration requirements:

  • Daily solar variation: Zero output from 6 PM to 7 AM; rapid ramping from 7 AM to 10 AM

  • Production goal: Minimum 6 hours of electrolyzer operation per day, ideally 8–10 hours

  • Constraints: Container footprint limited to two 20-foot units

Critical design decisions made based on the framework above:

  • Architecture chosen: AC-coupled with modest battery buffer (1.5MWh) to bridge the overnight gap and stabilize morning ramp

  • DC power supply requirements: 150–850V input range (covering solar array from early morning low to peak); <80ms response time; droop control for battery sharing

  • Cooling: Liquid-cooled because summer container temperatures exceeded 40°C during afternoon solar peak

  • Outcome achieved: 9.2 hours of average daily operation; 71% renewable utilization; zero grid dependency

This example shows how integration choices directly affect production hours, not just electrical compatibility.

Next Step: From Integration Principles to Equipment Comparison

By now you should have a clear framework for evaluating containerized DC power supplies: understanding your renewable profile, selecting an architecture, and working through the five technical steps. The actual comparison of specific power supply models—their efficiency curves at partial load, harmonic performance under fluctuating input, and physical layout within containers—builds directly on these foundation decisions.

When you are ready to examine specific implementations, focus first on how each candidate unit performs under your worst-case renewable input conditions (lowest voltage, fastest ramp, highest ambient temperature). Specifications at nominal input tell only part of the story.
