Thermal Sensor Calibration and Fault Diagnosis for Megawatt Chargers

Table of Contents

Your megawatt charger reports an over-temperature fault and shuts down mid-session. The thermal sensor reading shows 120°C, but a handheld thermometer on the connector reads 65°C. Is the charger genuinely overheating, or is the sensor lying to you?

In megawatt-class charging—where currents reach 3,000 A at up to 1,250 V DC—thermal sensors are the first line of defense against connector degradation, cable fires, and equipment damage. But sensors drift. They fail. And when they do, the consequences range from unnecessary service calls to undetected overheating that shortens component life.

This guide walks through the calibration procedures, common fault modes, and diagnostic techniques specific to thermal sensors in high-power DC charging systems. Whether you operate a fleet depot, a public charging hub, or an MCS pilot site, these practices will help you distinguish between real thermal events and sensor-induced false alarms.

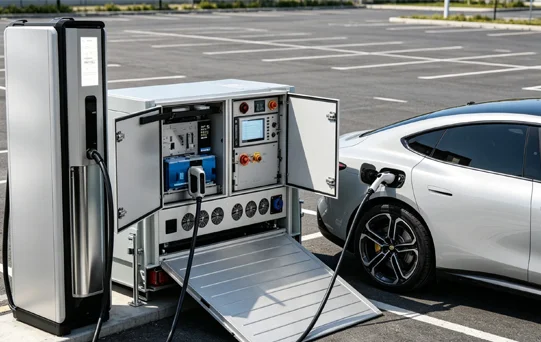

Megawatt Chargers

Understanding Thermal Sensors in Megawatt Charging Systems

Megawatt chargers typically use one of two temperature sensor types in connectors, cables, and power stages:

Sensor Type	Principle	Typical Application	Key Characteristic
NTC Thermistor	Resistance decreases as temperature rises	Cost-sensitive designs, moderate accuracy needs	Non-linear response; requires lookup table
PT1000 RTD	Resistance increases linearly with temperature	High-accuracy applications, MCS connectors	Linear response; 1000Ω at 0°C

In CCS2 and MCS connectors, PT1000 sensors are commonly embedded at the DC+ and DC- power contacts, with multiple sensors per plug to monitor both poles independently. These sensors operate continuously up to approximately 150°C, with short-term capability to 180–200°C.

What this means for your operation: A PT1000 sensor that reads 1000Ω at room temperature is healthy. A reading significantly above or below that value indicates drift—and drift means the temperature data your charger acts upon may be wrong.

According to IEC 60751, the international standard for industrial platinum resistance thermometers, RTDs are classified by tolerance:

Class A: ±0.06Ω (≈±0.15°C) at 0°C
Class B: ±0.12Ω (≈±0.3°C) at 0°C

These tolerances apply to new sensors. With use, RTDs can drift due to oxidation, mechanical strain, insulation resistance loss, or lead wire resistance imbalance. One comparative test found that over two years, 63 out of 126 RTDs drifted more than 0.1°C, and 17 showed extreme drift or failed completely.

If your charging network relies on thermal data for derating and shutdown decisions, understanding where your sensors sit on this drift spectrum is not optional—it is operational necessity. Review thermal monitoring specifications for high-power charging systems to understand how different sensor grades affect your fault detection reliability.

Calibration Procedures – Keeping Your Sensors Honest

Calibration is the process of comparing a sensor’s output against a known temperature reference and adjusting or documenting the deviation. For megawatt chargers, sensor calibration matters because:

Under-reporting temperature → Charger continues operating during actual overheating → Connector damage, fire risk
Over-reporting temperature → Premature derating or shutdown → Reduced availability, frustrated users

Step 1: Establish a Calibration Schedule

Industry practice recommends annual verification of charger parameters, including temperature sensors. For high-utilization sites or harsh environments (dust, humidity, extreme ambient temperatures), consider semi-annual checks.

Your decision framework:

Low-utilization sites (< 500 sessions/year) → Annual calibration check
Medium-utilization sites (500–2,000 sessions/year) → Bi-annual check
High-utilization fleet depots (> 2,000 sessions/year) → Quarterly monitoring with annual full calibration

Step 2: Perform a Basic Resistance Check

The simplest field diagnostic requires only a multimeter:

Disconnect the sensor from the charger control board
Set multimeter to resistance (ohms) mode
Measure across the sensor leads at known ambient temperature

Expected values at 25°C:

PT1000: ~1100Ω
NTC 10K: ~10,000Ω

If the reading deviates significantly from expectations (e.g., PT1000 reads 900Ω or 1300Ω at room temperature), the sensor has drifted or failed.

Step 3: Comparison Calibration (Laboratory Method)

For full calibration, sensors are removed and tested in a controlled environment against reference thermometers traceable to ITS-90 standards. The preferred method depends on temperature range:

Temperature Range	Preferred Method	Reference Instrument
-150°C to +250°C	Stirred liquid baths	Platinum RTDs
Up to 550°C	Salt baths	Platinum RTDs or rare metal thermocouples
Up to 1,000°C	Fluidized sand baths	Platinum-rhodium thermocouples

For most charging connector sensors operating in the -40°C to +150°C range, stirred liquid baths with a calibrated reference RTD provide sufficient accuracy.

Step 4: Document and Adjust

Record the deviation at multiple points across the sensor’s operating range. A correction table or curve can then be applied in the charger’s control software. If deviation exceeds the sensor’s rated tolerance (Class A or Class B per IEC 60751), replacement is recommended rather than software compensation.

Common Thermal Sensor Fault Modes – And How to Diagnose Them

Thermal sensors in megawatt chargers fail in predictable patterns. Recognizing these patterns speeds troubleshooting and reduces mean-time-to-repair (MTTR).

Fault Type 1: Open Circuit

Symptoms: Charger reports “sensor fault” or temperature reading at extreme value (e.g., >250°C or < 20°C for PT1000).

Root cause: Broken wire, disconnected connector, or internal sensor element fracture.

Diagnosis: Multimeter shows infinite resistance (OL) across sensor leads.

Fix: Replace sensor or repair wiring. This is the most common failure in high-vibration environments such as fleet depots with heavy vehicles.

Fault Type 2: Short Circuit

Symptoms: Temperature reading stuck at extreme low value (e.g., < -20°C for PT1000).

Root cause: Insulation breakdown, moisture ingress, or pinched wires creating a direct short.

Diagnosis: Multimeter shows near-zero resistance across sensor leads.

Fix: Locate and repair the short, or replace the sensor assembly. Moisture ingress is particularly common in outdoor charging stations with poor cable management.

Fault Type 3: Drift (In-Range Error)

Symptoms: Temperature readings are consistently off by a margin (e.g., reads 10°C high at all operating points), but within the sensor’s measurable range.

Root cause: Aging, thermal cycling, oxidation, or mechanical strain.

Diagnosis: Comparison calibration against a known reference reveals systematic deviation.

Fix: Apply correction in software if deviation is small and stable; replace if deviation exceeds tolerance or is unstable.

Fault Type 4: Intermittent Readings

Symptoms: Temperature values jump erratically during charging sessions. Readings may spike to 200°C then return to normal within seconds.

Root cause: Loose connection, corroded terminals, or electromagnetic interference (EMI) in high-power environments.

Diagnosis: Wiggle test—gently move the cable and connector while monitoring resistance. Fluctuating readings indicate intermittent contact.

Fix: Clean or replace terminals; ensure proper shielding and grounding. In ultra-fast charging systems, fiber-optic temperature sensing provides EMI-immune alternative to NTC probes.

Fault Type 5: Sensor Placement Error

Symptoms: Sensor reads normal temperatures, but connector or cable still overheats and fails.

Root cause: Sensor not positioned at the actual hot spot. Many failures start as localized hotspots; sensor placement is as important as sensor selection.

Diagnosis: Thermal imaging of the connector during a charging session reveals temperature gradients that the sensor is not detecting.

Fix: Relocate sensor closer to the highest-risk contact interface.

Beyond Single-Sensor Diagnostics – System-Level Fault Detection

Modern megawatt chargers collect more than just raw temperature values. A 2022 study published in Energies developed a fault-diagnosis system that collects AC sensor, DC sensor, temperature, and humidity data to calculate power conversion efficiency and diagnose power module status in advance. The system achieved 97.2% accuracy in pre-failure diagnosis using a neural network classification model.

What this means for your operation: A single drifting sensor is a maintenance event. A pattern of drift across multiple sensors, combined with efficiency degradation, is a predictor of impending power stage failure.

For operators managing distributed charging networks, explore Ultra-Fast Charging Station System for a charging infrastructure that integrates thermal data with current, voltage, and efficiency metrics to identify risky units before they fail.

The MCS Context

The Megawatt Charging System (MCS), now formalized in IEC TS 63379, explicitly addresses thermal management and temperature monitoring requirements. The specification supports system voltages up to 1,500 V DC and currents up to 3,000 A. Maximum allowable temperature rise for MCS connectors should not exceed 50K.

With CharIN conducting MCS interoperability testing that includes fully integrated systems, thermal sensor accuracy will become an increasingly important compliance factor. A charger that cannot reliably report temperature cannot demonstrate MCS compliance.

Real-World Scenario – Diagnosing a Recurring Over-Temperature Fault

Consider a fleet depot with six 1 MW chargers. One unit consistently reports over-temperature and derates mid-session, despite the connector feeling cool to the touch. The operator has replaced the charging cable twice—no improvement.

Step 1 – Resistance Check: The PT1000 sensor reads 980Ω at 25°C ambient (should be ~1100Ω). The sensor is under-reporting resistance, which the charger interprets as lower temperature.

Step 2 – Comparison Calibration: Laboratory testing reveals the sensor reads 8°C low across its entire range. The control board has been using this erroneous data to make derating decisions.

Step 3 – Root Cause: Inspection reveals the sensor’s lead wires have轻微 corrosion at the termination point, adding parallel resistance that skews the measurement.

Step 4 – Fix: Replace the sensor assembly and seal the termination against moisture ingress. The charger resumes full-power operation.

Cost avoided: Two unnecessary cable replacements (~$3,000 each) plus three weeks of reduced charging capacity (~$15,000 in lost revenue or operational delay). Total avoided cost: ~$21,000.

From Diagnostics to System Design – Building Reliability In

Thermal sensor calibration and fault diagnosis are reactive practices. The most reliable megawatt charging systems build thermal management into the design phase:

Redundant sensors at critical interfaces (e.g., dual PT1000 sensors per power contact)
Cross-validation between sensors (if sensor A reads 120°C but sensor B reads 65°C at the same location, flag for investigation)
Rate-of-change monitoring (rapid temperature rise is often more dangerous than high absolute temperature)
Predictive algorithms that detect drift patterns before they cause operational issues

For charging infrastructure serving heavy-duty EV fleets, where uptime directly impacts logistics and revenue, these design choices separate reliable operations from chronic service calls.

If you are planning or upgrading a megawatt charging installation, review Hydrogen Production Power Systems for high-reliability charging applications to understand how thermal monitoring integrates with overall system protection.
