When you are designing or upgrading a hydrogen production system, one fundamental question emerges early in the decision process: should the power supply that feeds your electrolyzer be an AC/DC converter or a DC/DC converter? Both use IGBT technology, but they serve different roles and come with distinct trade-offs in efficiency, control capability, and integration complexity.

This guide breaks down the key differences to help you understand which approach aligns with your power source configuration and operational priorities.
Understanding the Fundamental Role Difference
Before comparing specifications, it is essential to understand where each converter type fits in the power chain.
AC/DC converters (rectifiers) take alternating current from the grid or a renewable inverter and convert it to direct current for the electrolyzer. In this configuration, the power supply is the interface between the AC source and the DC load. In large-scale hydrogen production systems, AC–bus architectures remain the most common approach [9†L30-L31].
DC/DC converters, by contrast, take an existing DC input—typically from a DC bus fed by solar PV arrays, batteries, or the output of another rectifier—and adjust the voltage and current levels to match electrolyzer requirements.
A 2024 comprehensive review in Scientific Reports highlights that since the water electrolyzer functions as a DC load, the power supplied to it must be conditioned either through AC/DC or DC/DC conversion pathways [8†L27-L28]. Neither approach is universally superior; the choice depends entirely on your upstream power source.
Side-by-Side Comparison: AC/DC IGBT vs DC/DC IGBT Hydrogen Power Supplies
The table below compares the two converter types across the dimensions that matter most for hydrogen production decision-making.
| Comparison Dimension | AC/DC IGBT Converter (Rectifier) | DC/DC IGBT Converter |
|---|---|---|
| Upstream power source | AC grid or renewable inverter output | DC bus (solar PV strings, battery bank, or upstream rectifier) |
| Typical power range | 100kW to 10MW+ (grid-scale) | kW to multi-MW (depends on DC bus voltage) |
| Conversion stages | Single stage (AC → DC) | Single stage (DC → DC), or follows an AC/DC front end in two-stage systems |
| Typical efficiency | 97–98.5% (IGBT AFE designs) | 96–99% depending on topology and voltage ratio |
| Primary control variable | Output DC voltage and current; grid side power factor | Output voltage/current regulation with input tracking |
| Output ripple | <1.5–3% (with adequate filtering) | Can achieve <1% with interleaved topologies |
| Grid interaction | Direct; must comply with IEEE 1547, UL 1741 | None (if fed from DC bus) or indirect (via front-end rectifier) |
| Best suited for | Grid-tied hydrogen plants; AC-coupled renewable systems | DC-coupled solar or battery-fed systems; off-grid renewable hydrogen |
A 2024 comparative study published in Energies analyzed three rectifier types at a constant 5 MW power level, comparing efficiency, grid-side power quality, power factor, and overall investment cost. The study found that modern IGBT-based rectifiers (Active Front End designs) achieve high efficiency with unity power factor and low harmonic distortion [21†L16-L19]. Similarly, industry data shows that IGBT-based electrolyzer power supplies can achieve system efficiency exceeding 97% with output ripple below 1%, effectively protecting electrolyzers and extending service life [12†L26-L28].
What These Numbers Mean for Your Operation
-
Efficiency (97%+ vs lower): A 1% efficiency difference on a 5 MW system running 8,000 hours annually translates to roughly 400,000 kWh of additional energy consumption, which directly affects your hydrogen production cost per kilogram.
-
Ripple (below 1% vs higher): Lower DC current ripple means less additional heat generation inside the electrolyzer stack. A 2024 study from the University of Nottingham demonstrated that with optimal sizing, the impact of DC current ripple on electrolyzer efficiency can be minimized, but the relationship remains critical for long-term stack health [11†L10-L14].
-
Power factor (near unity): For AC/DC converters connecting to the grid, a power factor above 0.99 reduces reactive power charges from utilities and lowers transformer losses—meaning lower electricity bills before hydrogen production even begins.
Three Common Integration Architectures
Understanding where each converter type lives in the overall system helps clarify their relative roles.
Architecture A: Direct AC/DC (Grid-Tied)
In this configuration, an IGBT-based Active Front End rectifier connects directly from the medium-voltage AC grid to the electrolyzer DC bus. This is the traditional industrial approach—simple, reliable, and well-understood. Its design is relatively inexpensive, with high conversion efficiency since the loss introduced by an extra DC-DC converter stage is absent [13†L13-L15].
Best for: Grid-connected hydrogen plants with stable AC power.
Architecture B: AC/DC + DC/DC (Two-Stage)
An AC/DC rectifier first converts grid AC to an intermediate DC voltage, followed by a DC/DC converter that fine-tunes the output to the electrolyzer’s exact voltage-current curve. The addition of the DC/DC stage increases the ability to control DC voltage output and decouples AC-side from DC-side control [13†L15-L18].
Trade-off: The extra conversion stage reduces overall power conversion efficiency by approximately 2–4% compared to direct AC/DC.
Best for: Applications requiring wide voltage range operation or precise current regulation across varying loads.
Architecture C: DC/DC from Renewable DC Bus (DC-Coupled)
Solar PV arrays (with MPPT) or batteries feed a common DC bus. The DC/DC converter draws from this bus and conditions power for the electrolyzer. In this DC-off-grid topology, the wind turbine and PV are connected to a DC bus via two-stage conversion, addressing the volatility of renewable sources in traditional off-grid AC hydrogen production systems [18†L10-L14].
Best for: Off-grid solar-hydrogen plants; DC microgrids for hydrogen production.
A 2025 review in Electronics notes that DC–bus configuration offers advantages over AC–bus architecture, including higher efficiency, simpler energy management, and lower system costs—though large-scale hydrogen production systems most often still use an AC–bus architecture [9†L30-L32].

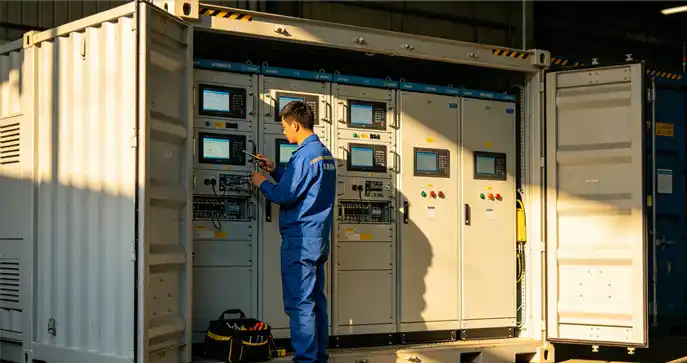

See the configuration examples for integrated hydrogen production power systems
Five-Step Decision Framework: Which Converter Fits Your System?
Use this step-by-step framework to evaluate which converter approach aligns with your power source and operational goals.
Step 1: Identify your primary power source type
-
If grid AC is your main source → AC/DC converter (direct or two-stage) is your starting point
-
If DC source (solar PV, batteries, or DC microgrid) powers your system → DC/DC converter is required
-
If both grid and renewables are present → consider hybrid architecture with AC/DC front end + DC/DC downstream
Step 2: Map your required voltage and current range
Electrolyzers have specific I-V curves. DC/DC converters offer greater flexibility in stepping voltage up or down across a wider range, while AC/DC rectifiers are typically optimized for a narrower output window at highest efficiency.
Step 3: Evaluate grid code requirements
For grid-tied systems, AC/DC converters must comply with local grid standards (IEEE 1547, UL 1741, CA Rule-21). DC/DC converters feeding from a DC bus do not interact directly with the grid, simplifying compliance.
Step 4: Calculate total system efficiency
For two-stage (AC/DC + DC/DC) systems, multiply the efficiencies of each stage. An AC/DC rectifier at 98% followed by a DC/DC converter at 98% yields 96% overall—a meaningful reduction over a direct AC/DC approach at 97–98%.
Step 5: Assess future scalability needs
If you plan to add battery storage or additional solar later, a DC/DC converter on a common DC bus allows easier expansion. If grid power will remain your primary source, an AC/DC rectifier with modular scalability is the more direct path.

Real-World Scenario: Two Systems, Two Converter Choices
Scenario 1: Grid-Tied Industrial Hydrogen Plant
-
Power source: Dedicated grid connection (medium voltage)
-
Electrolyzer: Alkaline (ALK) stack with rated DC voltage and current
-
Operation profile: Continuous, high annual operating hours
-
Decision: Direct AC/DC IGBT rectifier (Active Front End) with near-unity power factor
Why? Grid power is stable and abundant; the efficiency of direct AC/DC conversion avoids the penalty of a two-stage approach. The rectifier can meet grid power quality regulations without additional filtering stages, and the near‑unity power factor reduces utility reactive power charges.
Scenario 2: Off-Grid Solar Hydrogen Production
-
Power source: Solar PV array + battery buffer (sized for overnight or low‑sun periods)
-
Electrolyzer: PEM stack requiring a wide operating voltage range
-
Operation profile: Daily solar cycle; hydrogen stored for dispatch as needed
-
Decision: DC/DC converter fed from a common DC bus (PV + battery)
Why? A DC-coupled architecture—connecting PV and optionally other renewables to a DC bus—directly addresses the inherent volatility of solar input. The DC/DC converter handles the wide input voltage swings from the PV array (which can vary significantly with irradiance) and provides regulated output to the electrolyzer regardless of solar conditions. The battery buffer and DC/DC stage work together to ensure consistent hydrogen output over daily cycles.
Next Step: From Converter Type to Equipment Evaluation
By now, you should understand the fundamental difference between AC/DC and DC/DC IGBT hydrogen power supplies: AC/DC rectifiers are for grid-tied AC sources, while DC/DC converters are for existing DC buses from solar, batteries, or downstream of a rectifier. Your power source type, grid access, and efficiency priorities will determine which approach—or combination—fits your hydrogen production system.
When you are ready to evaluate specific power supply solutions, start by confirming your primary power source, calculating your required efficiency targets, and mapping your electrolyzer’s I-V operating range. These factors will guide your comparison of candidate units.
